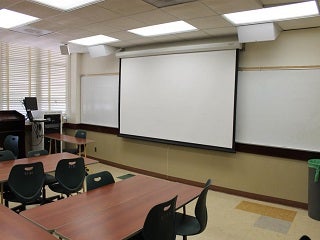

Rolfe 3121

Need help with the classroom AV system?
Call AVS at (310) 206-6597 or email avs@ucla.edu

Rolfe-3121
Capacity:36
Data Projection:Yes
Classroom Computer:Yes
Video Playback:Inputs Only
Sound System:Media & XLR Input
Recording:None
Wireless Network:Yes
Furniture:Movable

 Room Seating Layout

Data Projection

  • A Projector is installed in the ceiling. When activated, it can project either video or data.
  • A Classroom Computer is installed within the media cabinet.
  • A VGA Cable is available on the media cabinet for laptop connection.
  • Laptops that have a DVI output will need their own adapter to connect to the VGA cable.
  • A HDMI input is also available for digital signals. The appropriate cable and adapter would need to be brought to connect a digital device to the input.

Video Playback

  • An HDMI cable is available for media player connection.
  • Blu-ray / DVD players can be checked out from Audio Visual Services.

Internet Access

  • The room is designed for Wireless Network Access for all students and faculty.
  • There is also an Ethernet jack available on the media cabinet for wired connections. Instructors would need to bring their own Ethernet cable and the appropriate adapter for their device.
  • The Classroom Computer has its own wired connection and is already configured to the Classroom network.
  • For instructions on connecting to the Internet with a wired connection, visit the Classroom Network section.

Sound System

  • The Classroom Computer is already connected to the system for sound support.
  • An audio cable is installed with the VGA cable for laptop support.
  • This room is equipped with one microphone input (XLR) at the media cabinet for possible voice amplification. Handheld wired microphones or other units may be available for checkout; however, due to the high demand for microphones, they may not be available for this classroom for Winter & Spring Quarters (2022).
